Total Home Surge Protection Solution

Residential Commercial Industrial

Lighting Systems

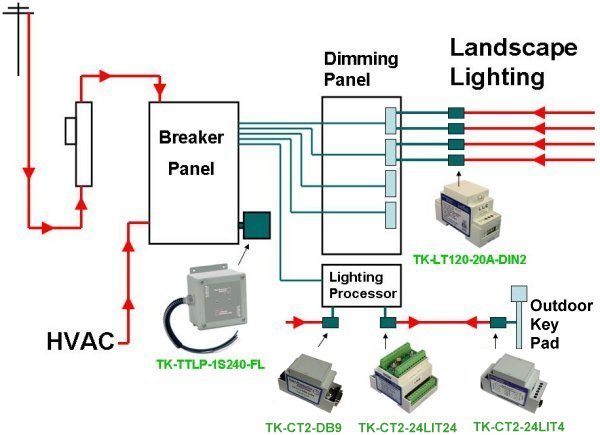

Lighting System Surge Protector Layout

Installing the TPS TK-TTLP-1S240-FL suppression filtering on upstream breaker panels and all processor links and dimming buses will dramatically reduce the likelihood of damage occurring. It is critical to protect any link or bus with long runs or that travels between buildings. Damage may occur because the ground reference between buildings can become separated during a lightning strike. This will produce damaging transients and is the most common type of port failure.

A. Protect 120V Circuit Feeding Processor

TK-LT120-20A-DIN2 data sheet Installation Manual Product Page

B. Protect 120V Circuits Feeding Outdoor Landscape Lighting

Protect against outside surges entering the system on this pathway and damaging the module and processor.
120 volt circuits that <20 amps use:

TK-LT120-20A-DIN2 data sheet Installation Manual Product Page

C. Protect Processor RS232 Port

TK-CT2-DB9 data sheet Installation Manual Product Page
Lutron Homework's Information (click for application notes in pdf format)

D. Protect communication lines to Keypad Link, Hybrid Repeater Link, Inter-Processor Link, Module Interface Link, Grafik Eye Link, Shade Interface etc.

Use 1 unit to protect links 1, 2, 4, 5, 6, and 8 (24 wire, 6 sets of 4).

TK-CT2-24LIT24 data sheet Installation Manual Product Page

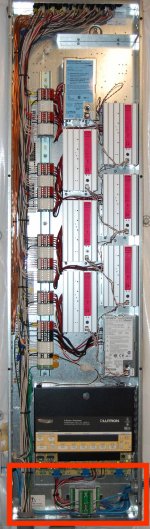

E. Protect H48/D48 Dimmer Interface

Use 1 unit to protect up to 12 dimming wires.  Use 2 units to protect up to 24 dimming wires.

TK-CT2-24LIT12 data sheet Installation Manual Product Page

F. Protect remote equipment with long runs, and protect wires that go outside the building or communicate with equipment fed from a different power source or in a different building.

Protect Module Interfaces, gate keypad and additional dimming panels from lightning induced or utility type surges that travel on communication lines and damage keypads. This unit is to be installed directly in front of the piece of equipment being protected.

TK-CT2-24LIT4 data sheet Installation Manual Product Page

Training Videos:

Lighting & Automation System Protection
ComTrack Installed
ComTrack Installation
pdf application notes for Lutron Homeworks Lighting Systems:
